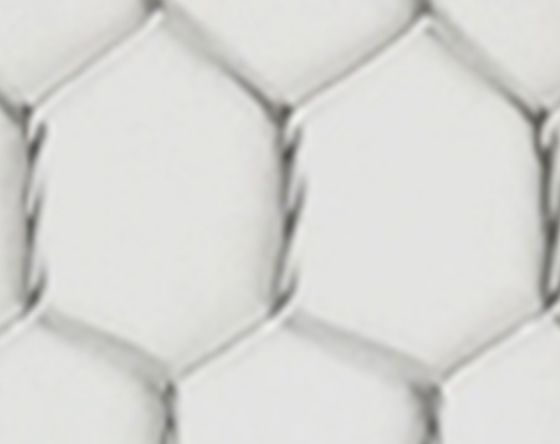

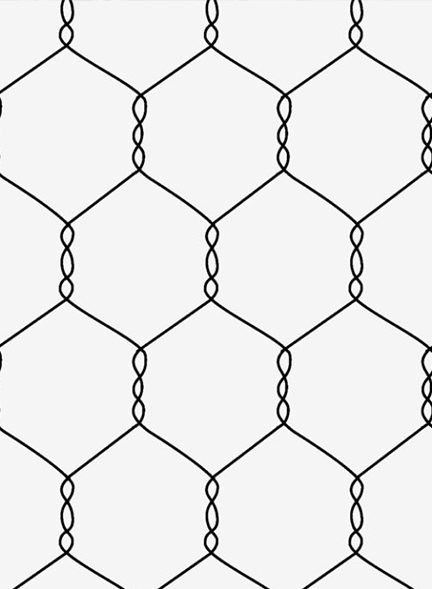

Tortoise shell mesh is generally made by twisting three wires together to form a hexagonal pattern. Available materials include vinyl-coated wire, galvanized iron wire, and stainless steel.

It is widely used from livestock and gardening applications to construction because it is easy to handle during installation and, even if part of the wire breaks, the mesh does not easily tear across the whole structure.

Materials	Vinyl-coated wire, galvanized iron wire, stainless steel mesh, and others
Applications	Thermal insulation, sieving, drying, reinforcement, fencing, partitioning, safety nets at construction sites, and more

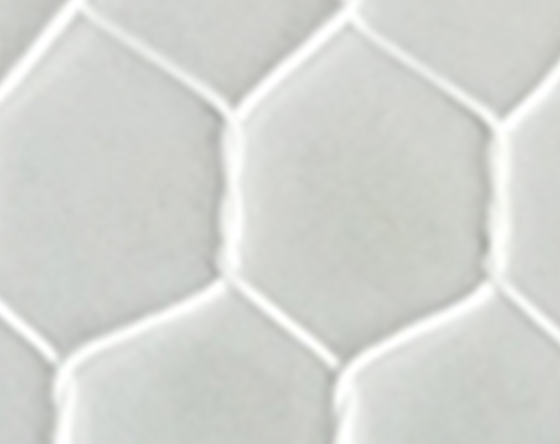

White

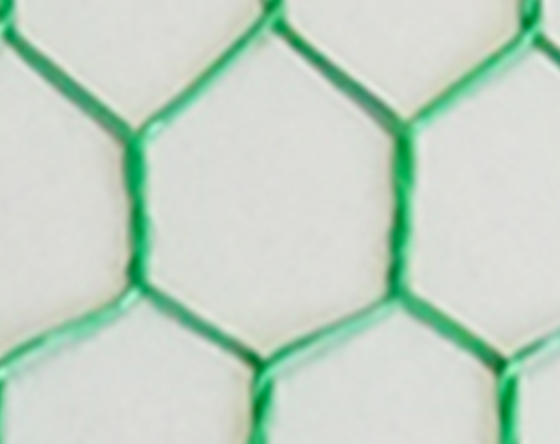

Green
Gray

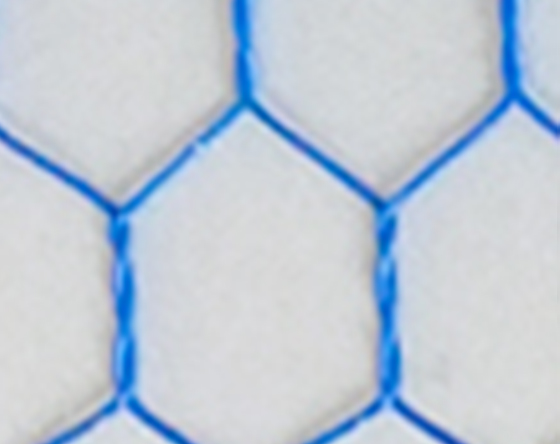

Blue

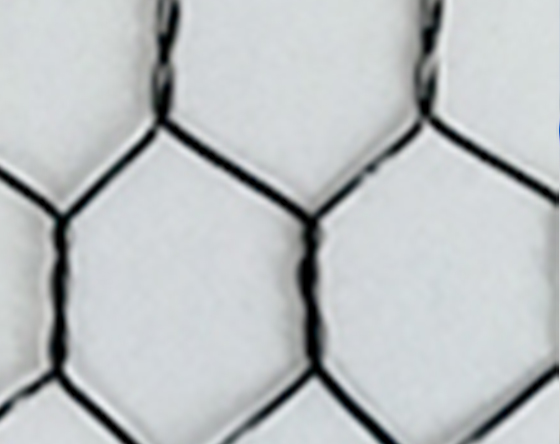

Black

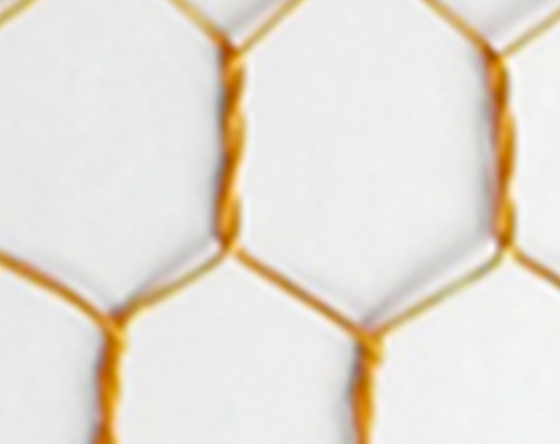

Orange

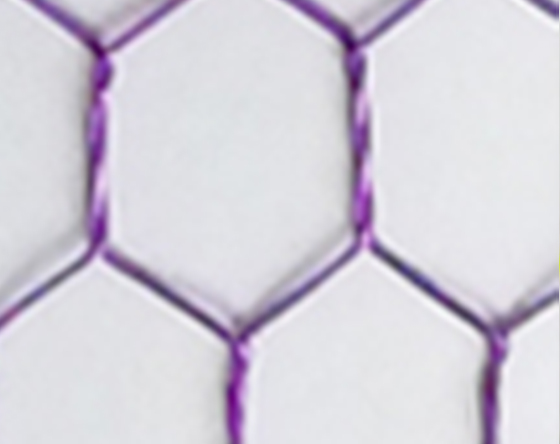

Purple

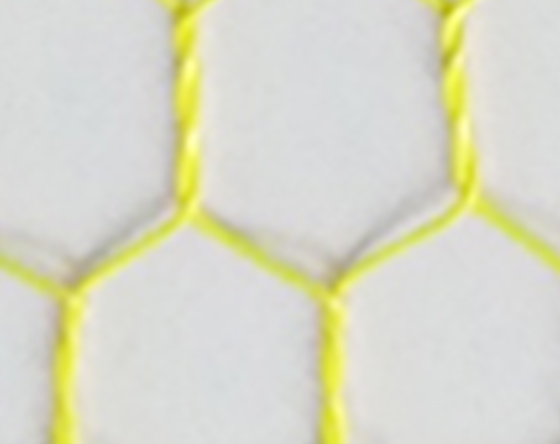

Yellow

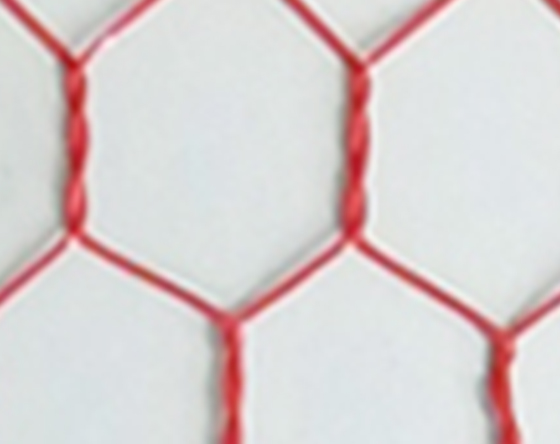

Red

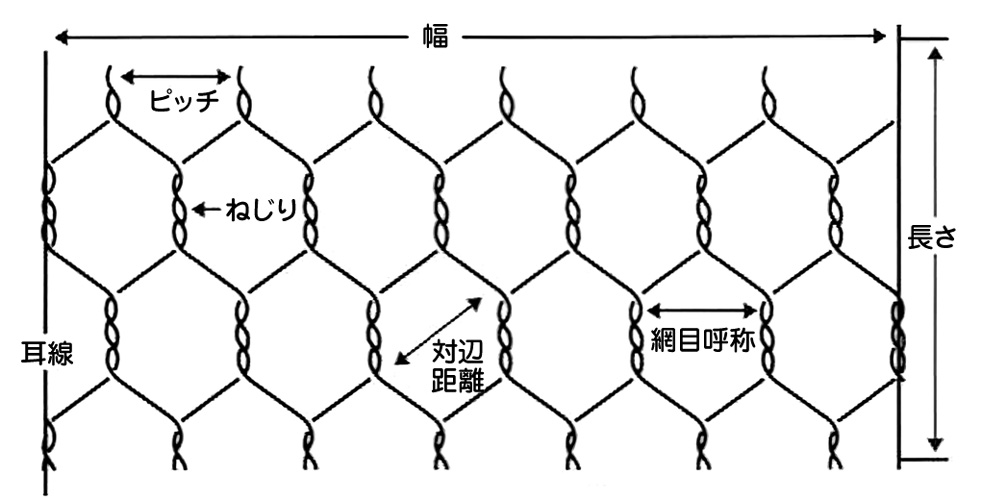

*JIS 3554 Standard Diagram [Excerpt]

Shape and Names of Each Part


*JIS 3554 Standard Table [Excerpt] Units (mm)

Pitch Dimensions and Tolerances

SPECIFICATION TABLE

Material	Standard		Dimensions		Packaging Unit
Material	Wire Diameter（mm）	Mesh Size (Nominal)	Weaving Width（mm）	Length（M）	Quantity
Galvanized Iron Wire	0.40	10	910	25	2
	0.40	16	910	25	5
	0.40	16	1000	25	5
	0.40	16	1000	50	2
	0.40	16	1000	100	1
	0.50	16	910	30	2
	0.50	16	1000	30	2
Vinyl-Coated Iron Wire （White, Green） 50m White Only	0.50	10	910	25	2
	0.50	10	1000	25	2
	0.50	10	1000	50	1
	0.50	16	910	25	5
	0.50	16	1000	25	5
Vinyl-Coated Iron Wire （White）Wide Width	0.50	10	1200	25	2
Vinyl-Coated Iron Wire （White）Wide Width	0.50	10	1500	25	2
Vinyl-Coated Iron Wire （Gray, Blue, Black, Red, Yellow, Purple, Orange）	0.50	10	910	25	2
	0.50	10	1000	25	2
	0.50	16	910	25	5
	0.50	16	1000	25	5
SUS304 Stainless Steel	0.40	10	910	30	2
	0.50	10	910	30	2
	0.40	16	910	30	2
	0.40	16	1000	30	2
	0.50	16	910	30	2
Copper	0.40	10	910	30	2
	0.40	16	910	30	2
	0.50	10	910	30	1
